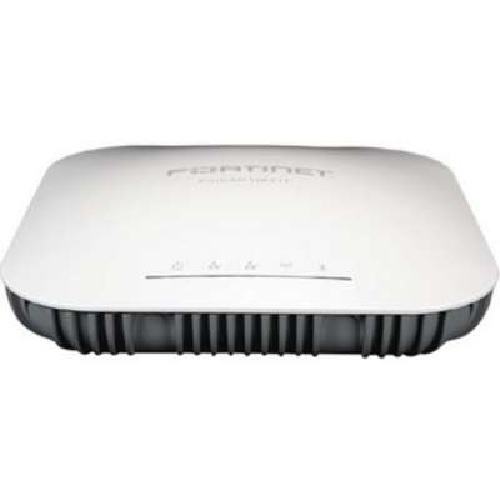

Access Point Fortinet FortiAP U431F FAP-U431F WIFI6 802.11ax
Visão geral
- High
Mantenha o software na versao mais recente recomendada pela Fortinet.
AP FortiAP U431F WIFI6 802.11ax
Access Point Fortinet FortiAP U431F FAP-U431F WIFI6 802.11ax
Specifications
|
|
FORTIAP-U431F |
FORTIAP-U433F |
|
Hardware |
|
|
|
Hardware Type |
Indoor AP |
Indoor AP |
|
Number of Radios |
3 + 1 BLE |
3 + 1 BLE |
|
Number of Antennas |
10 Internal + 1 BLE Internal |
10 External (RP-SMA) + 1 BLE Internal |
|
Antenna Type and Peak Gain |
PIFA: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz |
Dipole: 3.5 dBi for 2.4 GHz, 5 dBi for 5 GHz |
|
Frequency Bands (GHz) |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
|
Radio 1 Capabilities |
5.0 GHz a/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
5.0 GHz a/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
|
Radio 2 Capabilities |
2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
|
Radio 3 Capabilities |
2.4/5.0 GHz dual band b/g/n/ac (2x2:2 stream) 20/40 MHz (64 QAM) |
2.4/5.0 GHz dual band b/g/n/ac (2x2:2 stream) 20/40 MHz (64 QAM) |
|
Maximum Data Rate |
Radio 1: up to 4,804 Mbps Radio 2: up to 4,804 Mbps Radio 3: up to 300 Mbps |
Radio 1: up to 4,804 Mbps Radio 2: up to 4,804 Mbps Radio 3: up to 300 Mbps |
|
Bluetooth Low Energy Radio |
Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
|
Interfaces |
1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
|
Power over Ethernet (PoE) |
Dual redundant PoE power ports with support for IEEE 802.3at or dual 802.3af power |
Dual redundant PoE power ports with support for IEEE 802.3at or dual 802.3af power |
|
Simultaneous SSIDs |
Up to 16 (14 if background scanning enabled) |
Up to 16 (14 if background scanning enabled) |
|
EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
|
User/Device Authentication |
WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
|
Maximum Tx Power (Conducted) |
Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)* 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)* |
Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)* 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)* |
|
Kensington Lock |
Yes |
Yes |
|
IEEE Standards |
802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az |
802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az |
|
SSID Types Supported |
Local-Bridge, Mesh, & Tunnel |
Local-Bridge, Mesh, & Tunnel |
|
Per Radio Client Capacity |
Up to 512 |
Up to 512 |
|
Cellular Co-existence** |
Yes |
Yes |
|
LED Off Mode |
Yes |
Yes |
|
|
FORTIAP-U431F |
FORTIAP-U433F |
|
Advanced 802.11 Features |
|
|
|
802.11ac MU-MIMO Wave 2 |
Yes |
Yes |
|
Transmit Beam Forming (TxBF) |
Yes |
Yes |
|
Low-Density Parity Check (LDPC) Encoding |
Yes |
Yes |
|
Maximum Likelihood Demodulation (MLD) |
Yes |
Yes |
|
Maximum Ratio Combining (MRC) |
Yes |
Yes |
|
A-MPDU and A-MSDU Packet Aggregation |
Yes |
Yes |
|
MIMO Power Save |
Yes |
Yes |
|
Short Guard Interval |
Yes |
Yes |
|
OFMDA |
Yes |
Yes |
|
Wireless Monitoring Capabilities |
|
|
|
Rogue Scan Radio Modes |
Background, Dedicated |
Background, Dedicated |
|
WIPS / WIDS Radio Modes |
Background, Dedicated (recommended) |
Background, Dedicated (recommended) |
|
Packet Sniffer Mode |
Yes |
Yes |
|
Spectrum Analyzer |
Yes |
Yes |
|
Dimensions |
|
|
|
Length x Width x Height |
8.46 x 8.46 x 2.26 inches (215 x 215 x 57.5 mm) |
8.46 x 8.46 x 2.26 inches (215 x 215 x 57.5 mm) |
|
Weight |
1.0 lb (0.453 kg) |
1.0 lb (0.453 kg) |
|
Package (shipping) Weight |
1.8 lbs (0.82 kg) |
1.8 lbs (0.82 kg) |
|
Mounting Options |
Ceiling, T-Rail, and Wall |
Ceiling, T-Rail, and Wall |
|
Included Accessories |
Mount kits for Ceiling, T-Rail, and Wall |
Mount kits for Ceiling, T-Rail, and Wall, 10x dipole antennas |
|
Environment |
|
|
|
Power Supply |
GPI-130, or 2x GPI-115 GPI-130, or 2x GPI-115 |
GPI-130, or 2x GPI-115 GPI-130, or 2x GPI-115 |
|
Power Consumption (Maximum) |
24.5 W |
24.5 W |
|
Humidity |
10–90% Non-Condensed 5–90% Condensed |
10–90% Non-Condensed 5–90% Condensed |
|
Operating / Storage Temperature |
32–122°F (0–50°C) / -31–158°F (-35–70°C) |
32–122°F (0–50°C) / -31–158°F (-35–70°C) |
|
Directives |
Low Voltage Directive • RoHS |
Low Voltage Directive • RoHS |
|
UL2043 Plenum Material |
Yes |
Yes |
|
Mean Time Between Failures |
>30 Years |
>30 Years |
|
IP Rating |
— |
— |
|
Surge Protection Built In |
— |
— |
|
Hit-less PoE Failover |
Yes (802.3at only) |
Yes (802.3at only) |
|
Certifications |
|
|
|
Wi-Fi Alliance Certified |
No |
No |
|
DFS |
FCC, IC, CE, Japan, Taiwan, Korea |
FCC, IC, CE, Japan, Taiwan, Korea |
|
Warranty |
|
|
|
Limited Lifetime Warranty |
Yes |
Yes |
FAP-U431F / FAP-U433F RF Rx/Tx Performance Table
|
FORTIAP U431F AND U433F |
||||||
|
|
Radio 1 |
Radio 2 |
Radio 3 |
|||
|
|
Max Tx Power per transmit chain (dBm) |
Rx Sensitivity per receiver chain (dBm) |
Max Tx Power per transmit chain (dBm) |
Rx Sensitivity per receiver chain (dBm) |
Max Tx Power per transmit chain (dBm) |
Rx Sensitivity per receiver chain (dBm) |
|
2.4 GHz, 802.11b |
|
|
|
|
|
|
|
1 Mbps |
20 |
-98 |
— |
— |
19 |
-96 |
|
11 Mbps |
20 |
-89 |
— |
— |
19 |
-87 |
|
2.4 GHz, 802.11g |
||||||
|
6 Mbps |
20 |
-94 |
— |
— |
19 |
-92 |
|
54 Mbps |
20 |
-75 |
— |
— |
19 |
-73 |
|
2.4 GHz, 802.11n HT20 |
||||||
|
MCS0 |
19 |
-93 |
— |
— |
18 |
-91 |
|
MCS7 |
17 |
-74 |
— |
— |
16 |
-72 |
|
2.4 GHz, 802.11n HT40 |
||||||
|
MCS0 |
19 |
-92 |
— |
— |
18 |
-90 |
|
MCS7 |
17 |
-73 |
— |
— |
16 |
-71 |
|
2.4 GHz, 802.11ax HE20 |
||||||
|
MCS0 |
18 |
-90 |
— |
— |
17 |
-88 |
|
MCS11 |
16 |
-71 |
— |
— |
15 |
-69 |
|
2.4 GHz, 802.11ax HE40 |
||||||
|
MCS0 |
17 |
-88 |
— |
— |
16 |
-86 |
|
MCS11 |
15 |
-68 |
— |
— |
14 |
-66 |
|
5.0 GHz, 802.11a |
||||||
|
6 Mbps |
20 |
-92 |
20 |
-92 |
— |
— |
|
54 Mbps |
20 |
-72 |
20 |
-72 |
— |
— |
|
5.0 GHz, 802.11n HT20 |
||||||
|
MCS0 |
20 |
-91 |
20 |
-91 |
— |
— |
|
MCS7 |
18 |
-72 |
18 |
-72 |
— |
— |
|
5.0 GHz, 802.11n HT40 |
||||||
|
MCS0 |
20 |
-88 |
20 |
-88 |
— |
— |
|
MCS7 |
18 |
-69 |
18 |
-69 |
— |
— |
|
5.0 GHz, 802.11ac VHT2 |
0 |
|||||
|
MCS0 |
20 |
-91 |
20 |
-91 |
— |
— |
|
MCS9 |
18 |
-67 |
18 |
-67 |
— |
— |
|
5.0 GHz, 802.11ac VHT4 |
0 |
|||||
|
MCS0 |
20 |
-88 |
20 |
-88 |
— |
— |
|
MCS9 |
18 |
-62 |
18 |
-62 |
— |
— |
|
5.0 GHz, 802.11ac VHT8 |
0 |
|||||
|
MCS0 |
19 |
-85 |
19 |
-85 |
— |
— |
|
MCS9 |
17 |
-59 |
17 |
-59 |
— |
— |
|
5.0 GHz, 802.11ac VHT160 |
||||||
|
MCS0 |
16 |
-82 |
16 |
-82 |
— |
— |
|
MCS9 |
15 |
-56 |
15 |
-56 |
— |
— |
|
5.0 GHz, 802.11ax HE20 |
||||||
|
MCS0 |
19 |
-90 |
19 |
-90 |
— |
— |
|
MCS11 |
17 |
-66 |
17 |
-66 |
— |
— |
|
5.0GHz, 802.11ac HE40 |
||||||
|
MCS0 |
19 |
-87 |
19 |
-87 |
— |
— |
|
MCS11 |
17 |
-61 |
17 |
-61 |
— |
— |
|
5.0 GHz, 802.11ac HE80 |
||||||
|
MCS0 |
18 |
-94 |
18 |
-94 |
— |
— |
|
MCS11 |
16 |
-58 |
16 |
-58 |
— |
— |
|
5.0 GHz, 802.11ac HE16 |
0 |
|||||
|
MCS0 |
15 |
-81 |
15 |
-81 |
— |
— |
|
MCS11 |
14 |
-55 |
14 |
-55 |
— |
— |
Gerenciamento de acesso universal
Últimas tecnologias WiFi 6 802.11ax
Especificações técnicas
Especificacoes
| Familia | FortiAP |
|---|---|
| Linha de Produto | Wireless FortiAP |
Comparar modelos similares
| Caracteristica | Produto atual  Access Point Fortinet FortiAP U431F FAP-U431F WIFI6 802.11ax Consulte preço Disponibilidade sob consulta |  Consulte preço Disponibilidade sob consulta |  Consulte preço Disponibilidade sob consulta | |
|---|---|---|---|---|
| Linha de Produto | wireless fortiap | wireless fortiap | wireless fortiap | wireless fortiap |
| Familia | fortiap | fortiap | fortiap | fortiap |
| Tipo de produto | — | — | — | equipamento |
| Solucao Fortinet | — | — | — | secure networking |
