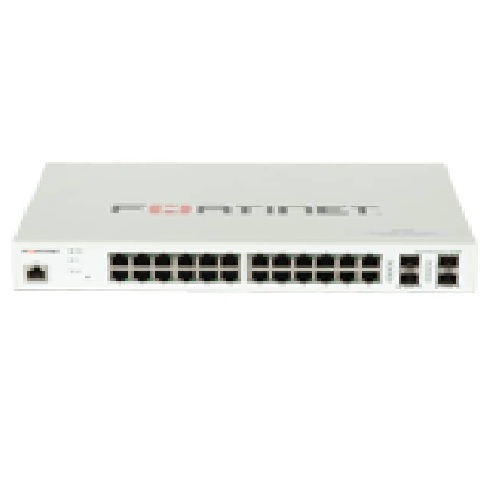

Switch Fortinet FortiSwitch 224E 24 portas Gigabit + 4 SFP FS-224E

FORTISWITCH FORTILINK MODE (WITH FORTIGATE)

Management and Configuration

Auto Discovery of Multiple Switches

Yes

Number of Managed Switches per FortiGate

8 to 256 Depending on FortiGate Model (Please refer to admin guide)

FortiLink Stacking (Auto Inter-Switch Links)

Yes

Software Upgrade of Switches

Yes

Centralized VLAN Configuration

Yes

Switch POE Control

Yes

Link Aggregation Configuration

Yes

Spanning Tree

Yes

LLDP/MED

Yes

IGMP Snooping

Yes (not supported on 1xxE-Series)

L3 Routing and Services

Yes (FortiGate)

Policy-Based Routing

Yes (FortiGate)

Virtual Domain

Yes (FortiGate)

Security and Visibility

802.1x Authentication (Port-based, MAC-based, MAB)

Yes

Syslog Collection

Yes

DHCP Snooping

Yes

Device Detection

Yes

MAC Black/While Listing

Yes (FortiGate)

Policy Control of Users and Devices

Yes (FortiGate)

UTM Features

Firewall

Yes (FortiGate)

IPC, AV, Application Control, Botnet

Yes (FortiGate)

High Availability

Support FortiLink FortiGate in HA Cluster

Yes

LAG support for FortiLink Connection

Yes

Active-Active Split LAG from FortiGate to FortiSwitches for Advanced Redundancy

Yes (with FS-2xx, 4xx, 5xx)

FORTISWITCH 224D-FPOE

FORTISWITCH 224E

FORTISWITCH 224E-POE

Total Network Interfaces

24x GE RJ45 ports and

24x GE RJ45 ports and

24x GE RJ45 ports and

4x GE SFP ports

4x GE SFP ports

4x GE SFP ports

Dedicated Management 10/100 Port

1

1

1

RJ-45 Serial Console Port

1

1

1

Form Factor

1 RU Rack Mount

1 RU Rack Mount

1 RU Rack Mount

Power over Ethernet (PoE) Ports

24 (802.3af/802.3at)

NA

12 (802.3af/802.3at)

PoE Power Budget

370 W

NA

180 W

Mean Time Between Failures

> 10 years

> 10 years

> 10 years

System Specifications

Switching Capacity (Duplex)

56 Gbps

56 Gbps

56 Gbps

Packets Per Second (Duplex)

83 Mpps

83 Mpps

83 Mpps

MAC Address Storage

16 K

16 K

16 K

Network Latency

< 1µs

< 1µs

< 1µs

VLANs Supported

4 K

4 K

4 K

Link Aggregation Group Size

8

8

8

Total Link Aggregation Groups

Up to number of ports

Up to number of ports

Up to number of ports

Packet Buffers

1.5 MB

1.5 MB

1.5 MB

DRAM

512 MB

512 MB

512 MB

FLASH

128 MB

128 MB

128 MB

Dimensions

Height x Depth x Width (inches)

1.73 x 12.2 x 17.5

1.73 x 9 x 12.99

1.73 x 9 x 12.99

Height x Depth x Width (mm)

44 x 310 x 440

44 x 230 x 330

44 x 230 x 330

Weight

10.64 lbs (4.83 kg)

4.78 lbs (2.17 kg)

5.37 lbs (2.44 kg)

Environment

Power Required

100–240V AC, 50–60 Hz

100–240V AC, 50–60 Hz

100–240V AC, 50–60 Hz

Power Supply

AC built in

AC built in

AC built in

Redundant Power

Optional FRPS-740

Redundant AC

Optional FRPS-740

Power Consumption (Average / Maximum)

380 W / 397 W

17.2 W / 17.3 W

220.18 W / 223.57 W

Heat Dissipation

85 BTU/h

59.095 BTU/h

74.29554 BTU/h

Operating Temperature

32–122°F (0–50°C)

32–122°F (0–50°C)

32–122°F (0–50°C)

Storage Temperature

-4–158°F (-20–70°C)

-4–158°F (-20–70°C)

-4–158°F (-20–70°C)

Humidity

10–90% non-condensing

10–90% non-condensing

10–90% non-condensing
